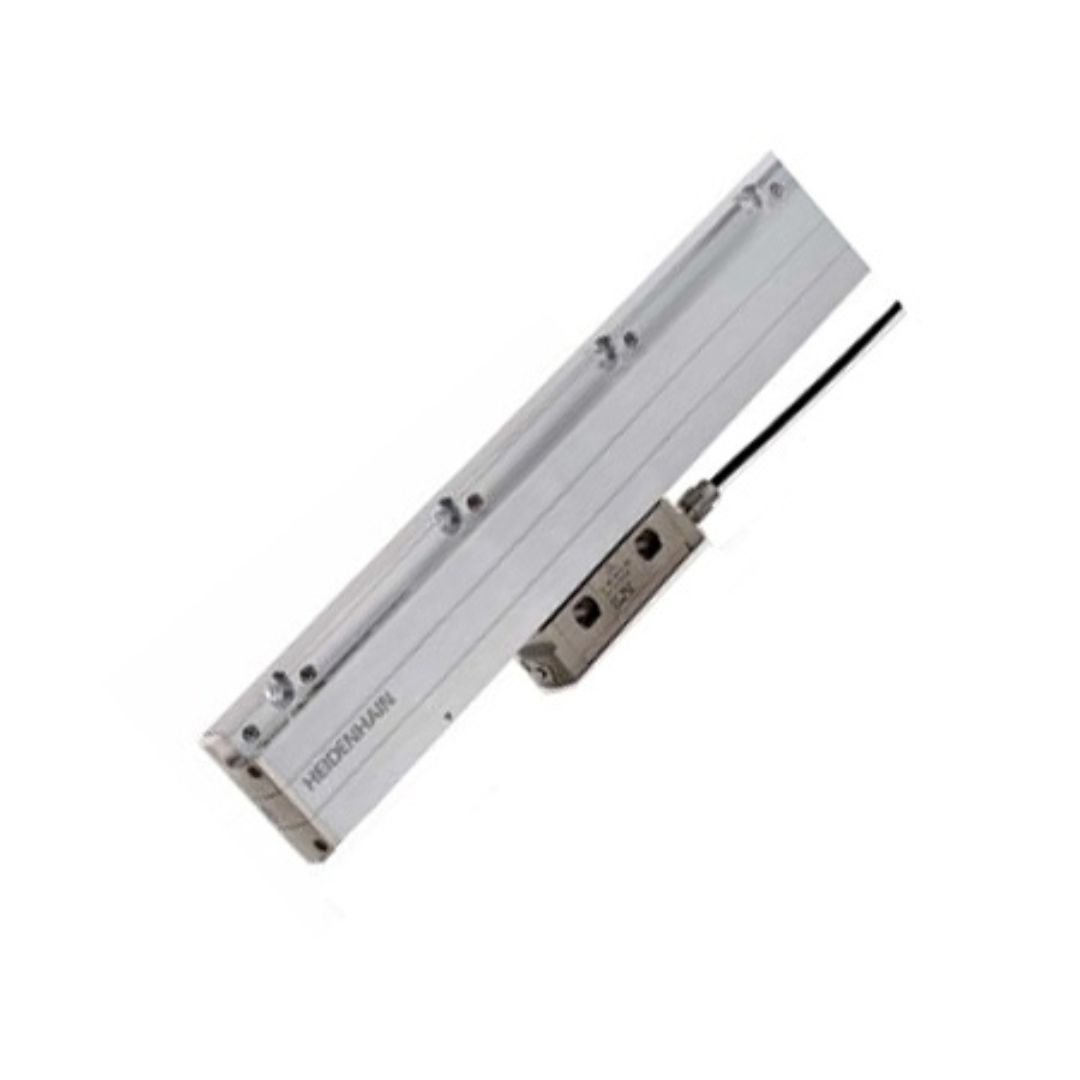

Core Components Of Digital Encoders In CNC Motors

The main components of digital encoders used in CNC motors depend on the type of encoder, typically either optical or magnetic. In the case of optical encoders, the components include a light source, a code disc, photodetectors, a sensor, a signal processor, and a housing. In the case of magnetic encoders, the components include a pulse wheel and a scanning head. In this blog, Walker Machinery, a leading distributor of digital encoders and CNC controls in Milton, Ontario, explores these core components in detail.





What Are The Core Components Of Optical Encoders Used In CNC Motors?



Light Source



Since this type of encoder operates via light, the light source provides the impetus to begin operation. It is typically an LED light that sends light to the code disc.



Code Disc



The code disc has a series of lines or slots on it. The sensor uses these lines to determine the speed and position of the CNC motor.



Photodetectors



When the code disc rotates, the photodetectors take the change in light intensity as a signal. This change in light intensity is converted into an electrical signal by them.



Sensor



The sensors take the mechanical motion of the wheel and convert it further into readable electrical signals.



Signal Processor



The signals sent in by the sensor are further processed by this component. It amplifies weak signals, removes noise, and converts them into electrical pulses that the motor controller can read to facilitate the right speed and motor positioning.



Housing



The housing is the external layer that protects the core components of an optical encoder from external conditions such as moisture and dust.





What Are The Core Components Of Magnetic Encoders Used In CNC Motors?



Pulse Wheel



The pulse wheel is similar to a code disc in optical encoders. However, the difference is that it has two alternating magnetic poles around it. When the wheel rotates, the poles pass by a sensor, which generates the pulses in accordance with the movement of the wheel.



Scanning Head



The scanning head is the sensor that senses the movement of the magnetic poles as the wheel rotates. It generates a signal that is proportional to the wheel movement, used for further processing by the controller and to provide the right feedback.





Conclusion



In closing, these components form the core of optical and magnetic encoders used in CNC motors.



To learn more about digital encoders, contact us at Walker Machinery today. As one of the biggest distributors of CNC controls, DRO systems, and digital encoders in Milton, Ontario, we offer specialized solutions for your specific needs. Contact us at 905-876-0890 today for more details.





FAQs:



Are optical encoders considered absolute encoders?



No, optical encoders can be both absolute and incremental.



Are magnetic encoders more robust than optical encoders?



Yes, though not as accurate, magnetic encoders are far more durable than optical encoders.
