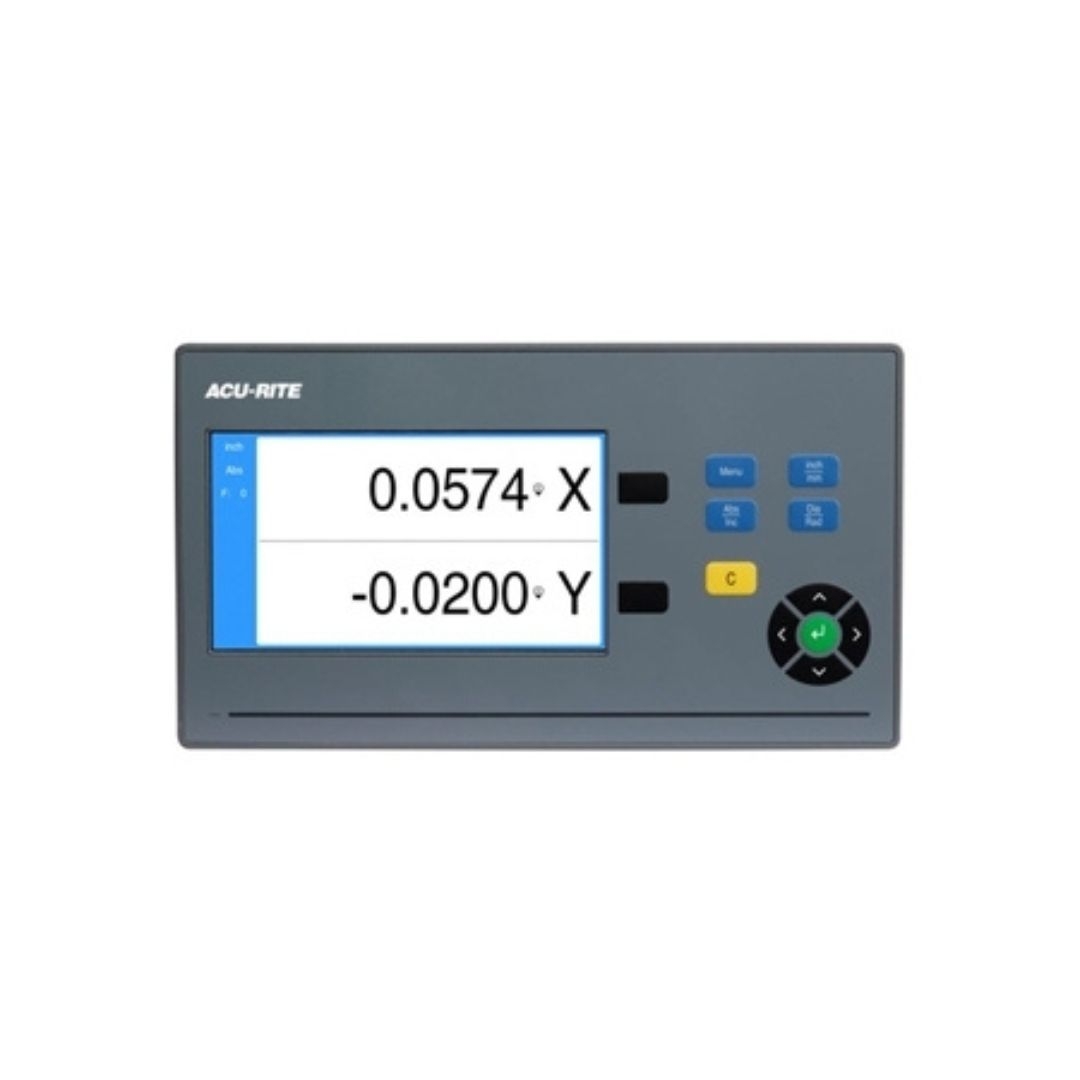

3 Key Features Of DRO In Machine Control Systems

The 3 key features of DRO units in machine control systems include operator control enhancement, backlash compensation, and advanced settings. In this blog, Walker Machinery, a reputed distributor of digital readouts and digital encoders in Milton, Ontario, explores these 3 features of DRO units in detail.

What Are The Key Features Of DRO Units In Machine Control Systems?

Operator Control Enhancement

DRO units eliminate the need for detailed manual calculations and automate the entire process. Before DRO systems, operators had to read mechanical handwheel dials and count revolutions, which is, of course, prone to errors. Thus, by eliminating human error and increasing setup speeds, digital readout systems help enhance operator control.

Backlash Compensation

Backlash is a major challenge during manual measurements in machining operations. Machine control systems use DRO to mitigate this because they directly read the movement of the table rather than the lead screw rotation. This difference helps eliminate any backlash errors and offers a high level of precision and accuracy during machining operations.

Advanced Settings

Modern digital readout systems also have plenty of advanced features and settings that truly elevate their utility in machine control systems. Some common examples include calculation of bolt hole patterns, managing tool library, having the ability to switch between absolute and incremental coordinate measurements, and more.

Conclusion

To summarize, due to the ability to provide accurate feedback, remove backlash errors, enhance operator control, coordinate measurement switching, and machine tool library and numerous other features, DRO units are an integral part of machine control systems. This is why they are used for both automated CNC operations as well as retrofitted to manual machining tools.

To learn more about diverse machine control system solutions, contact us at Walker Machinery today. As one of the major distributors of digital readouts in Waterloo, Ontario, our collection of CNC control solutions includes digital encoders, linear scales, related accessories and more. With decades of experience in this field, we proudly serve a wide variety of industries ranging from robotics to metrology and more. For more information, contact us at 905-876-0890 today.

FAQs:

What are the common components of digital readout systems?

The core components of digital readout systems include a digital display, a computer processor, and encoders.

Where are digital readouts used?

Digital readouts are commonly used in lathes, milling machines and grinders.
