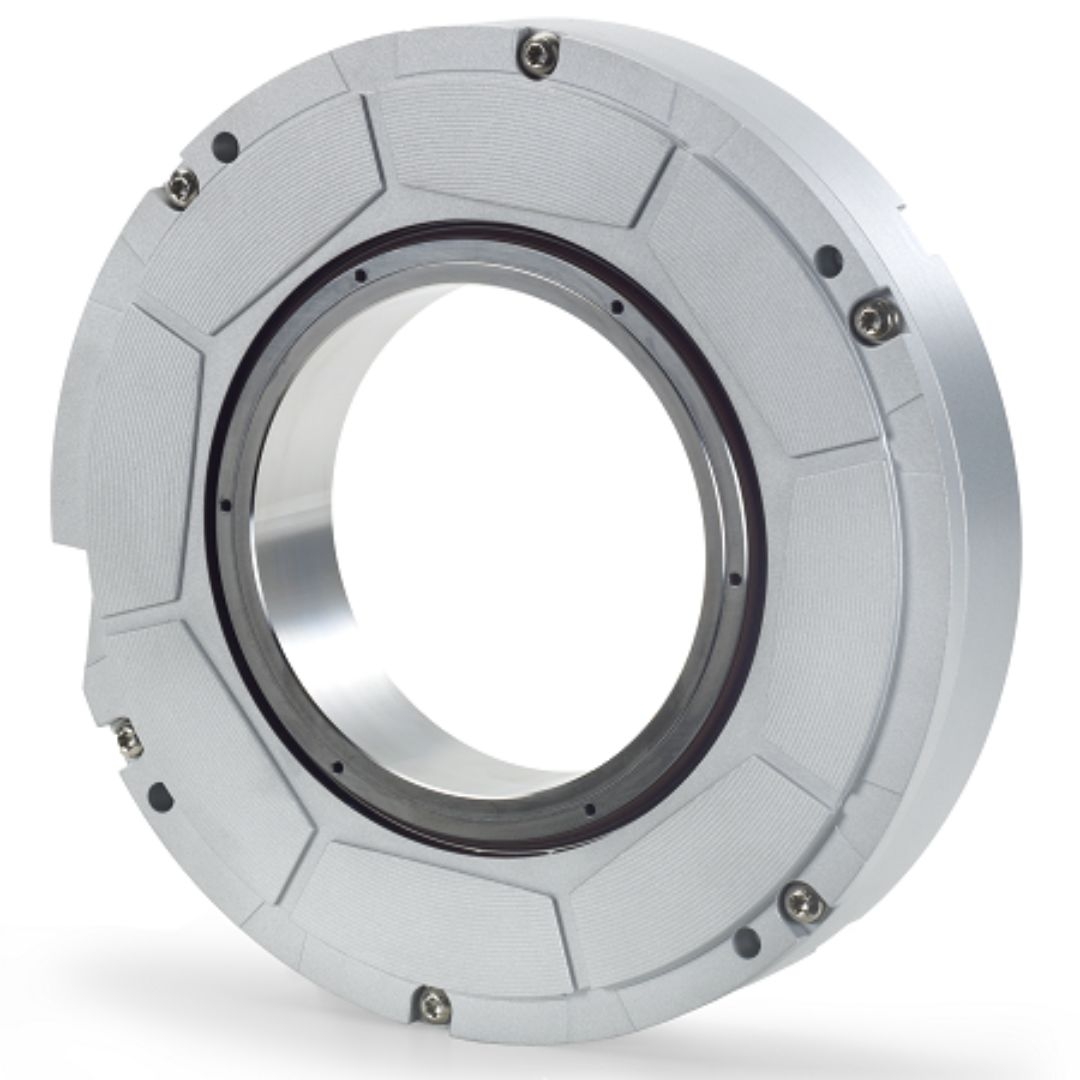

4 Machine Tool Applications Of Industrial Angle Encoders

The 4 main applications of industrial angle encoders in machine tools include callipers and rotary tables, swivel milling heads, spindle orientation, and gear and hobbing machines. Walker Machinery, a leading distributor of digital encoders, DRO units, and other CNC control tools in Milton, Ontario, explores the applications of angle encoders in detail.

Where Are Industrial Angle Encoders Used In Machine Tools?

Callipers And Rotary Tables

In the case of callipers and rotary tables, industrial angle encoders are mainly used to provide precise closed-loop angular feedback. This is specifically beneficial for 4th and 5th axis CNC milling machines and specialized machining centers.

Swivel Milling Heads

Milling heads are often used for simultaneous machining. This requires a high level of precision, particularly when it comes to tilting tool orientations along multiple planes. Precision angle encoders fit this need perfectly due to their highly sensitive and precise sensors that account for minute adjustments.

Spindle Orientation

The spindle often stores the automatic tool changer. Industrial angle encoders are applied here to determine precise stopping positions so that automatic tool changers can perform their tasks with accuracy. Angle encoders are also valuable in spindles for rigid tapping operations, which is a form of creating internal threads with a tightly locked spindle rotation.

Gear And Hobbing Machines

In gear and hobbing machines, industrial angle encoders are responsible for synchronizing multi-axis rotation. This is vital to dynamically cut gear teeth with high precision and avoid transmission errors.

Conclusion

To summarize, industrial angle encoders are used in many different types of machine tools such as rotary tables, milling heads, spindles, and hobbing machines.

To learn more about angle encoders, contact us at Walker Machinery today. As one of the biggest distributors of digital encoders, DRO systems, and CNC control systems in Milton, Ontario, we have decades of experience in this field, which is backed by the excellent quality of our products. Contact us at 905-876-0890 today for more details.

FAQs:

How are angle encoders protected from environmental factors?

Angle encoders are shielded from environmental factors by sealed housings, which protect them from dust, moisture, and high vibration.

What is bit resolution in angle encoders?

Bit resolution in precision angle encoders is defined as the number of unique position values an absolute encoder can measure in a single rotation, or 360 degrees.
