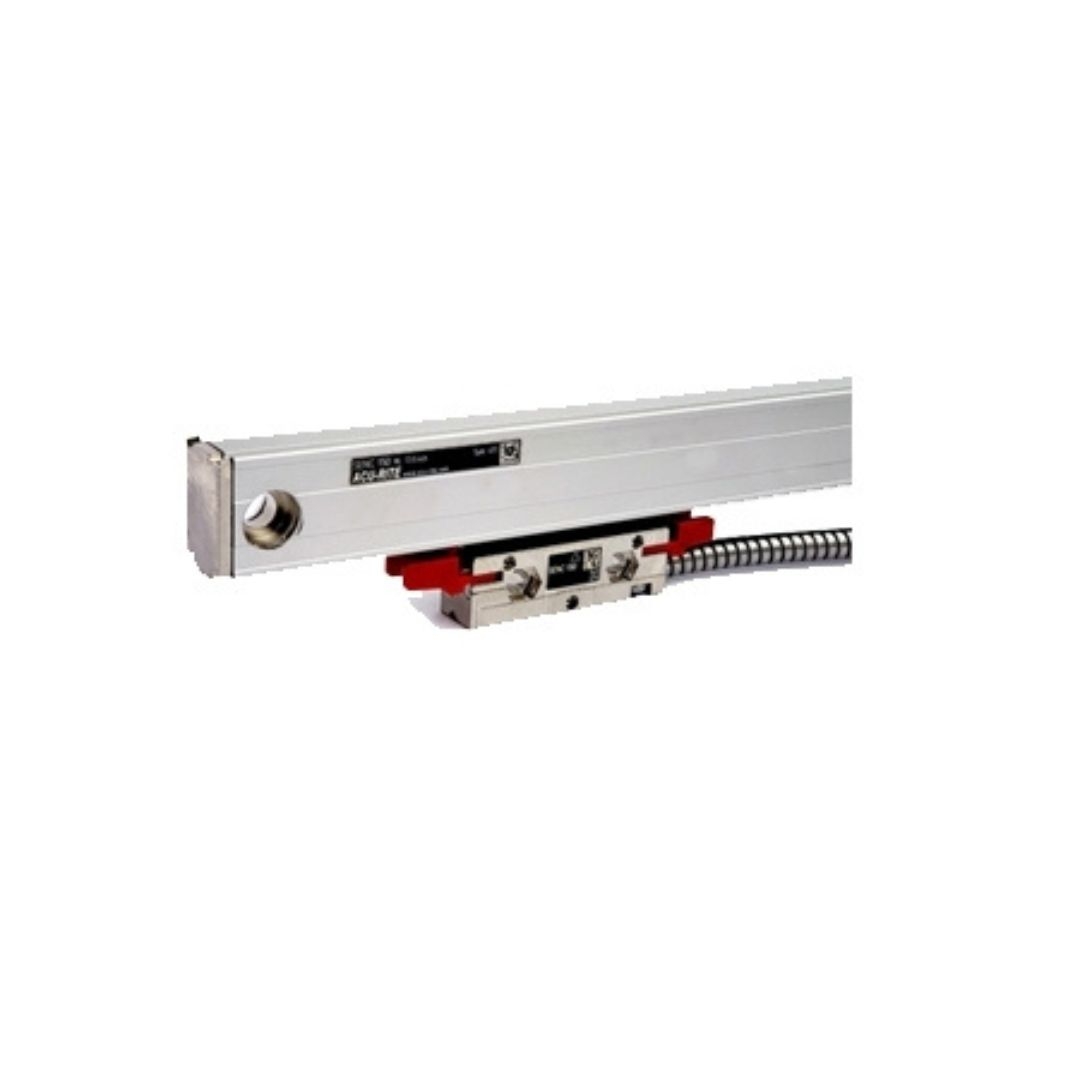

3 Advantages Of Using Linear Scales

The benefits of using linear scales for measurement include highly precise measurements, robust construction, and easy integration with pre-existing systems. They are used as a complement to DRO units and CNC control systems. To further elaborate on their benefits, Walker Machinery, a leading distributor of CNC control systems in Milton, Ontario, explores the major advantages of linear scales in this blog.

What Are The Benefits Of Using Linear Scales?

Highly Precise Measurement

Linear scales are among the most accurate and precise measuring devices. The reason behind this accuracy is their mechanism, which is the reflected light method. These are typically used in optical encoders where the position is determined by the light reflected off a patterned scale. Linear scales employing this mechanism automatically lead to excellent machining accuracy.

Robust Construction

Apart from high accuracy and precision, the linear scales are also quite robust, making them a versatile choice along with DRO systems. The reason behind their durability lies in their design. The glass used in a linear scale is resistant to temperature and changes in humidity, which can cause variations in size, density, and shape in other materials. Moreover, some versions of linear scales also have a scanning system that prevents any external contaminants from altering their accuracy. Thus, linear scales are a valuable asset in the harshest of conditions.

Easy Integration

A device is only as good as its versatility, and in terms of machine compatibility, linear scales are very versatile. They can be easily integrated into a wide range of devices. Many linear scales are retrofitted to milling machines, lathes, grinders, and other types of inspection equipment.

Conclusion

In closing, linear scales are a key device to have along with DRO units and CNC control systems as they offer extreme precision, durabilit,y and easy integration across numerous machines.

To learn more about linear scales, contact us at Walker Machinery today. As one of the biggest distributors of encoders and CNC control systems in Milton, Ontario, we have decades of experience in this field, which is backed by the excellent quality of our products.

FAQs:

What are some key applications of linear scales?

Linear scales are primarily used in industrial manufacturing and electronics.

What are some possible issues of using linear scales?

Some probable issues with linear scales include electrical connectivity, equipment failure, and improper installation.
