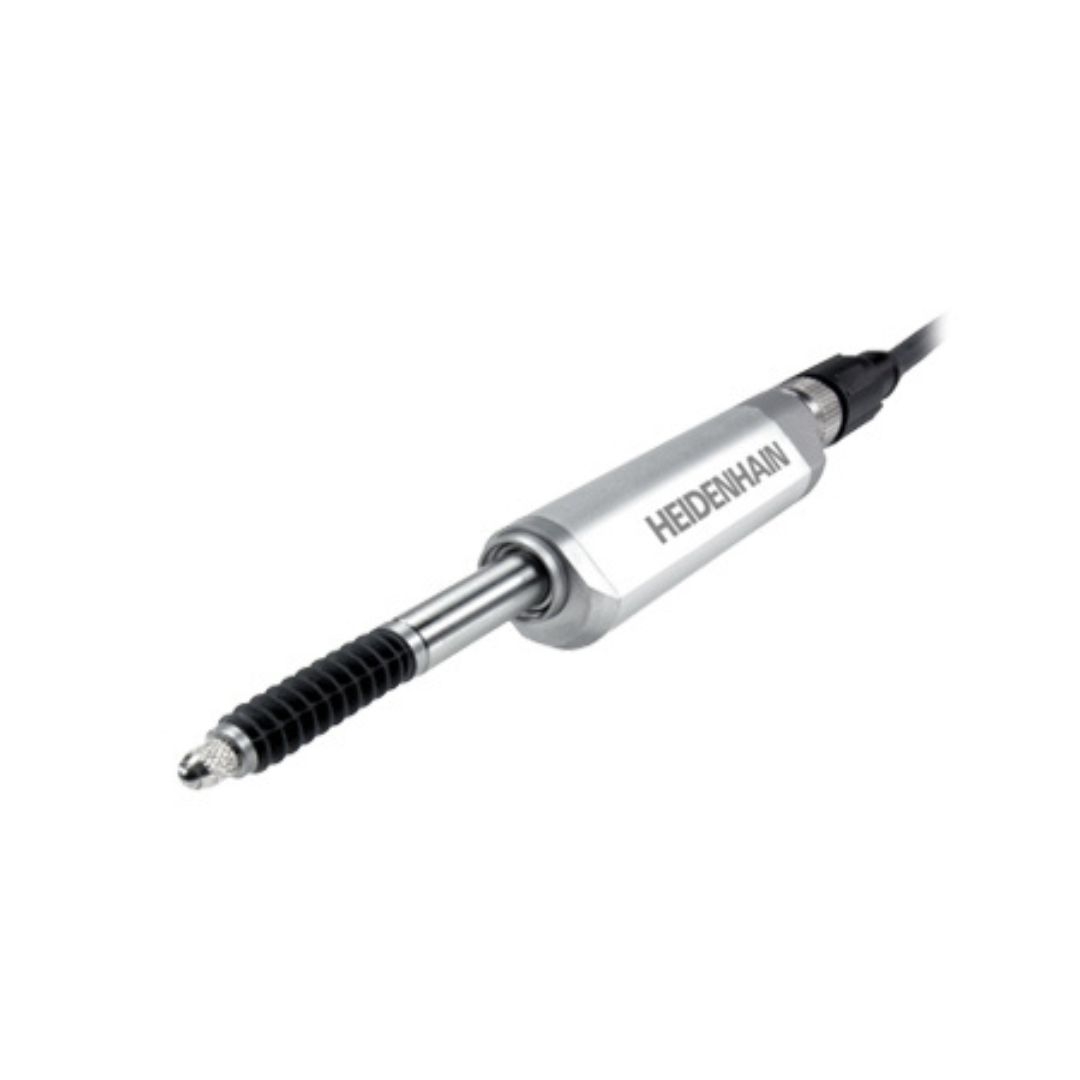

Applications Of Heidenhain Length Gauges In Quality Assurance

The two major applications of Heidenhain length gauges in quality assurance include metrology and production control, and gauge block calibration and measuring device inspection. In this blog, Walker Machinery, a major distributor of Heidenhain digital encoders such as rotary encoders, linear encoders, angle encoders and more, explores these applications in detail.

What Are the Applications of Heidenhain Length Gauges in Quality Assurance?

Metrology And Production Control

Heidenhain length gauges are a staple in metrology and production control applications in the form of inspecting incoming goods in a facility, or quick checking of product dimensions after a machining process. Additionally, these length gauges are also used to evaluate quality control processes. Thus, in any application where reliable and accurate measurement is required without compromising on speed, length gauges play a major role. Lastly, their large travel lengths are also a significant advantage, as they can measure parts ranging from 5mm to 95 mm in most cases.

Gauge Block Calibration And Measuring Device Inspection

Measuring devices are a great way to ensure product quality and specification. But when it comes to checking if the measuring devices are operating correctly as per set standards, length gauges come into the picture. This also includes inspection of gauge blocks. Inductive gauges are typically used for these applications. However, the small measuring range of inductive gauges, often being only around 10 um, becomes a limiting factor. Heidenhain length gauges bypass this issue with their large measuring range and accuracy. Hence, they are an excellent way to calibrate measuring devices.

Conclusion

To conclude, the Heidenhain length gauges are mainly used in checking production control and calibrating measuring devices quickly, accurately, and with incredible reliability.

To learn more about length gauges and measuring solutions, contact us at Walker Machinery today. As one of the major distributors of digital encoders in Milton, Ontario, our collection includes linear encoders, rotary encoders, angle encoders, and more. For more information, contact us at 905-876-0890 today.

FAQs:

Where are length gauges used in production?

In production, length gauges are primarily used in multipoint inspection apparatuses and position measurement.

Are length gauges durable for industrial environments?

Yes, length gauges are considered durable for industrial environments due to their consistent accuracy and high thermal stability, making them fit for use in production machines and related equipment.
