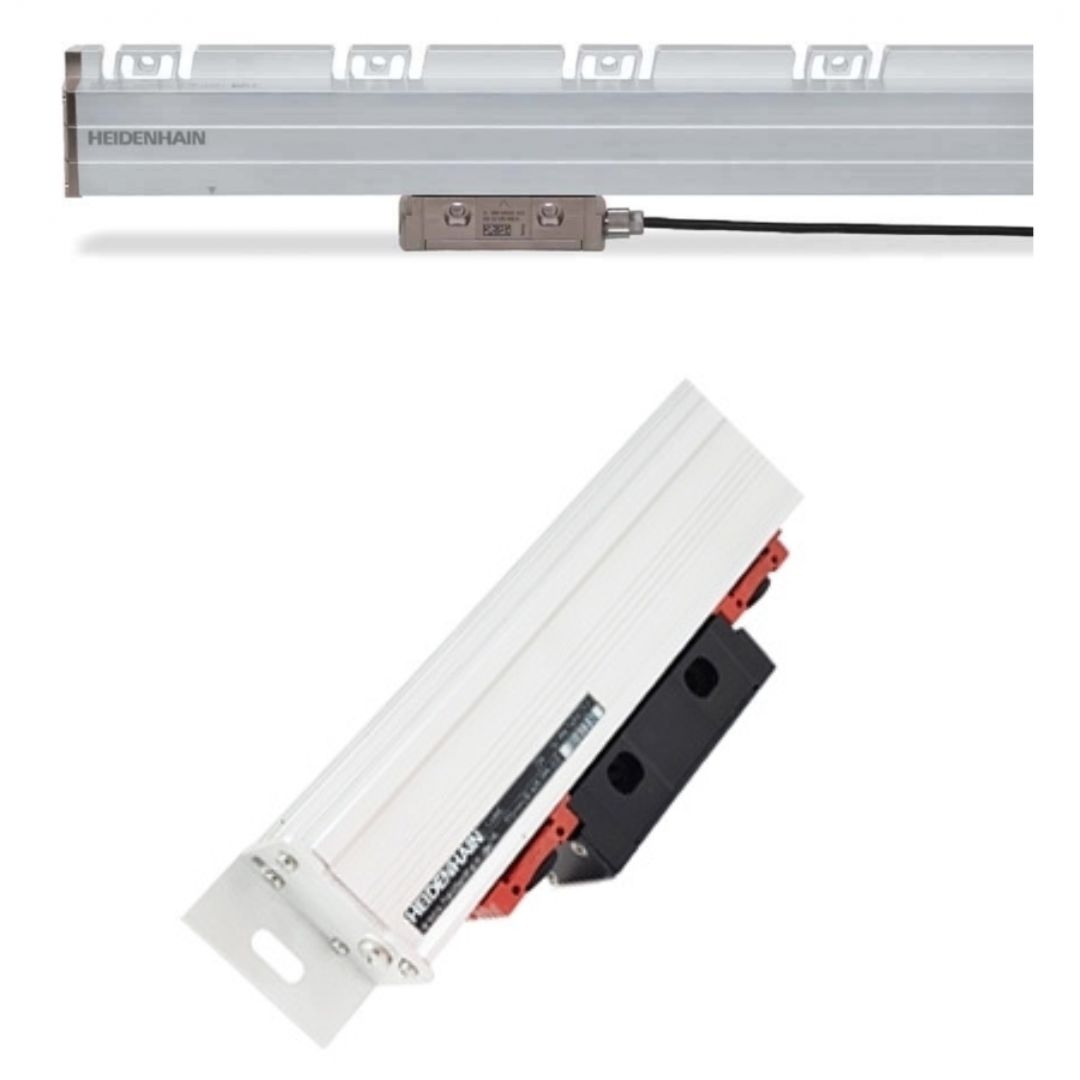

Common Linear Encoder Issues and Troubleshooting Techniques

The most common linear encoder issues include contamination, electrical connectivity problems, and signal interference and noise. Walker Machinery, a major distributor of digital encoders and CNC control systems in Milton, Ontario, explores these common issues and offers possible solutions in this blog.

What Are Some Common Issues With Linear Encoders?

Contamination

Contamination is a prevalent issue in linear encoders and can negatively affect their performance. The most common causes of contamination include dust, debris, or coolant leaking into the digital encoder. This, in turn, can interfere with the various movements and readings.

To resolve this issue, make sure to gently clean the linear encoders on a regular basis. If the enclosure is damaged, try to get it replaced. If using exposed encoders, consider sealed encoders for better performance in such conditions.

Electrical Connectivity Issues

Linear scales and encoders can also suffer from poor accuracy and precision due to electrical connectivity issues. The most common causes include loose connections, damaged cables, or faulty wiring. All these can lead to intermittent signal transmission or complete blockage, causing the linear encoder to fail.

In this case, check the entire electrical connection for faulty or loose wiring, and get them promptly replaced. Once done, the encoder should work as intended.

Signal Interference And Noise

The linear encoders operate in an environment where several CNC machines and equipment are operating. This can cause some type of signal interference due to the electromagnetic field generated by these machines. Indirectly, they can hinder the signal transmission of linear encoders.

In this case, use some type of shielding or signal filtering techniques to ensure that the linear encoders are not interrupted by electromagnetic signals from other devices.

Conclusion

In closing, contamination, electrical issues, and signal interference can all affect linear encoder performance. To prevent this, consider following the troubleshooting tips stated above for each issue.

To learn more about linear scales and encoders, contact us at Walker Machinery today. As one of the biggest distributors of digital encoders and CNC control systems in Milton, Ontario, we have decades of experience in this field, which is backed by the excellent quality of our products.

FAQs:

What are the major types of linear scales?

The major types of linear scales include optical scales, magnetic scales, inductive scales, and capacitive scales.

What are the main applications of linear encoders?

The main applications of linear encoders include milling machines, lathes, electrical discharge machines (EDMs), and coordinate measuring machines (CMMs).
