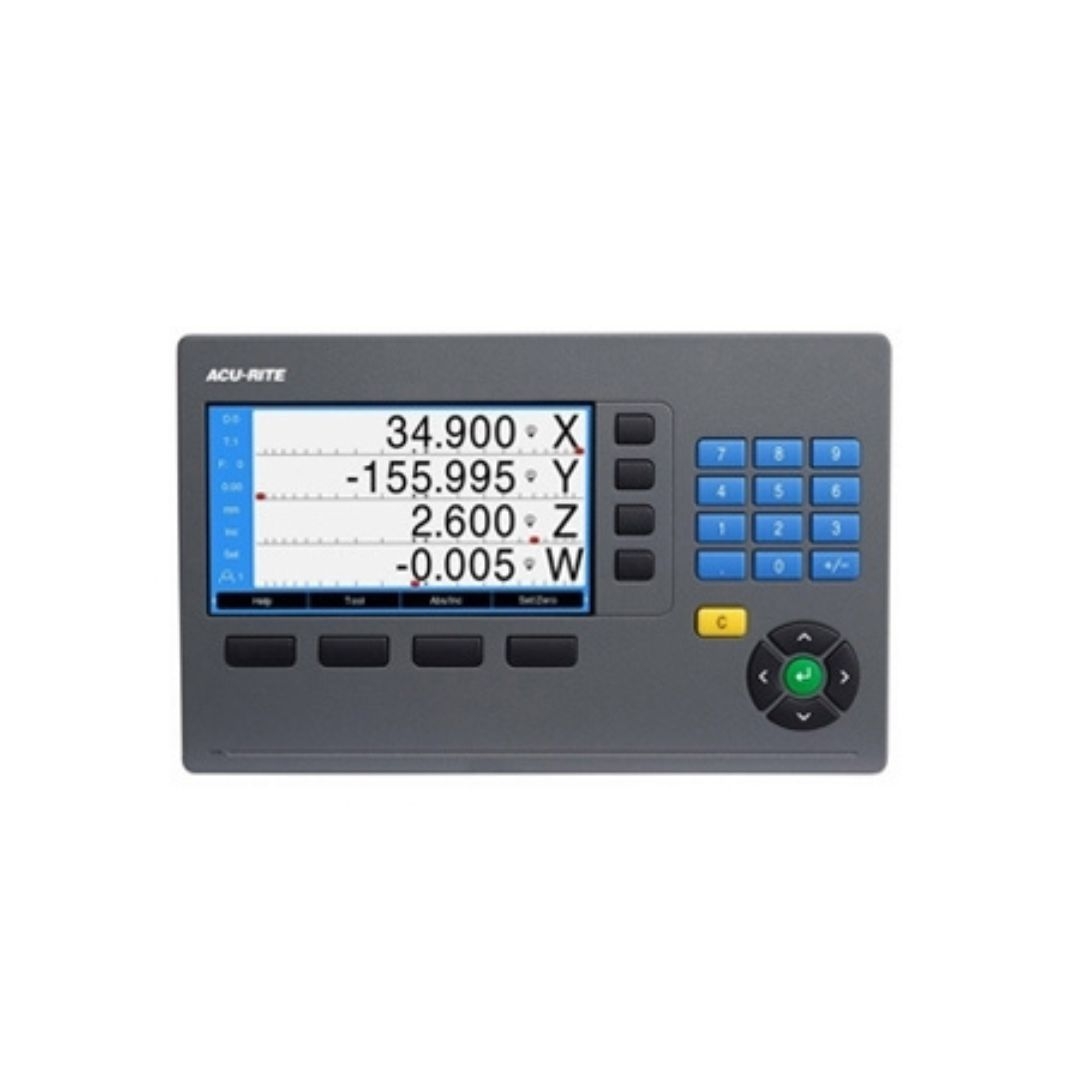

Importance Of Tool Offsets In Digital Readout Units

Tool offsets are a major part of digital readout units, as they provide excellent recall, easy reference, quick-tool-change capabilities, and versatile functionality. Walker Machinery, a reputed distributor of DRO units and digital encoders in Milton, Ontario, explores these features in detail in this blog.

Why Are Digital Readouts Important In Tool Offset Functionality?

Excellent Recall

Modern DRO units have the unique ability to store the different tool offsets in a dedicated tool library. This feature enables them to be quickly recalled later. Therefore, previously fed data can be reused later. This is particularly used in lathe-based CNC machines.

Easy Reference

To ensure easy reference for tool offset for new tools added to the system, DRO units use a method known as the Master Tool. In this method, one tool is designated as the master, and it is used to establish a reference for all other tools in the library. Thus, when new parts are added, the reference Master Tool is used to calculate the offset for all other tools, saving precious time during operations.

Quick Tool Change

When the tools are changed rapidly in a CNC machine, the digital readout system remembers its position in space. Hence, the device does not have to be reset after every tool change.

Versatile Usage

When a new tool is added, typically, it has to undertake a test cut to account for tool wear and new geometry. However, with the tool offset functionality in DRO units, this is no longer necessary. The tool offset automatically compensates for these parameters, further optimizing the machining process.

Conclusion

To summarize, tool offset functionality in a digital readout system is a major bonus as it improves operating speed, efficiency, and accuracy, especially during lathe-based operations.

For more details on DRO unit features and applications, reach out to us at Walker Machinery today. As a leading distributor of DRO units and digital encoders in Milton, Ontario, our experts can help you find the precise digital readout system for your specific applications. Contact us at 905-876-0890 for further enquiries.

FAQs:

What machines are compatible with DRO units?

DRO units are compatible with milling machines, lathes, EDM machines, and grinding machines.

How many axes are required for DRO units in milling machines?

Typically, a 3-axis system is sufficient for DRO units used in milling operations.
